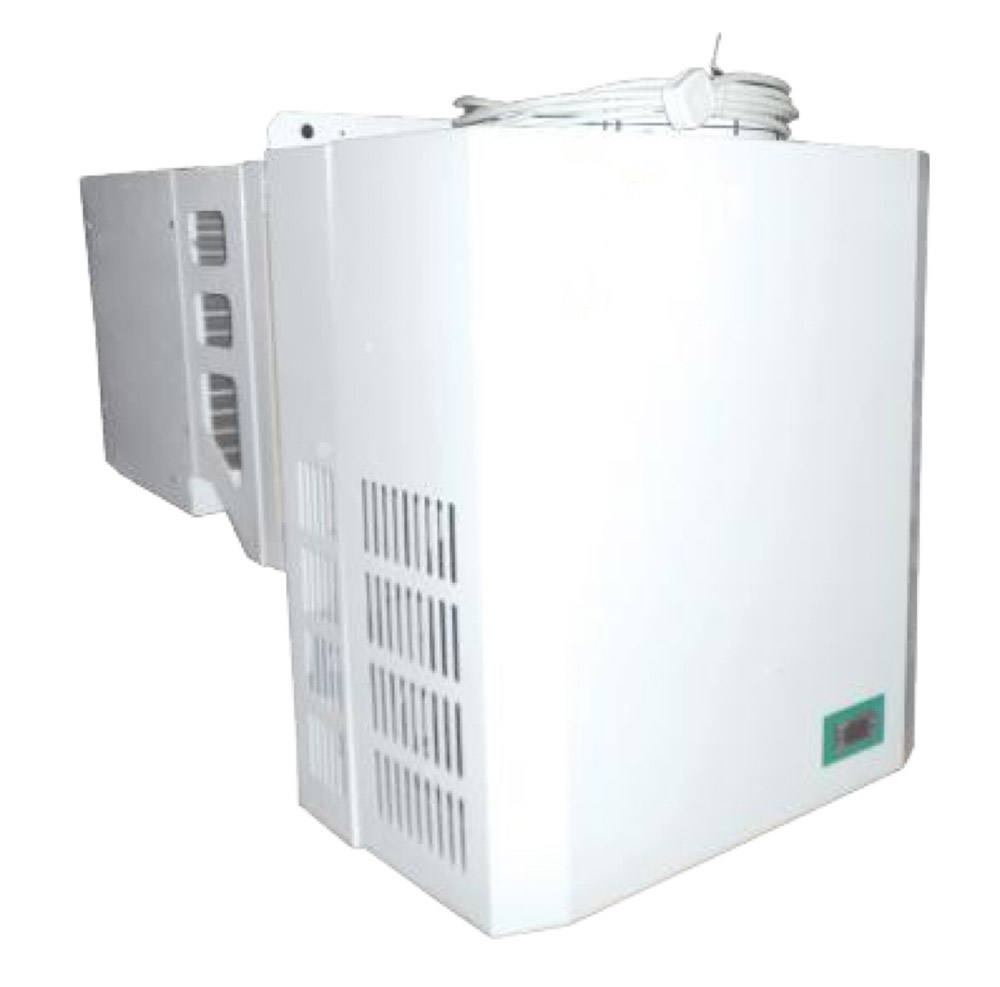

Wall-mounted Mono Block Condensing Unit

Refrigeration Unit

Wall-mounted Mono blocks condensing unit can fit the temperature of -5℃~+5℃and -15℃~-25℃. It is suitable for small cold storage, such as hotels, hygiene, medicine, agriculture, chemical and other industries.

- Compact structure, intelligent operation, integrated design

- Use well-known compressors, high efficiency

- Intelligent control, two choices for temperature,without debugging

- Convenient installation, do not need professional technicians, 20 minutes to complete the installation

Product Highlights

+ MORE

Overview

CONTACT US

Technical Information

Product model：XMZ050P, XMZ075P, XMZ100P, XMZ125P, etc.

Features：

Refrigerant：R404A, R507A, R448A, R22, R410A

Compressor brand：Embraco, Copeland, Invacant, Panasonic, etc.

Color：outside white

Application：small cold storage,It is widely used in hotels, hygiene, medicine, agriculture, chemical and other industries

Compressor type：Scroll

Function:  fast frozen

Item: Condensing Unit

After Warranty Service：Video technical support/Online support

Certification：CE, UL

Wall-mounted Mono blocks condensing unit can fit the temperature of -5℃~+5℃and -15℃~-25℃. It is suitable for small cold storage, such as hotels, hygiene, medicine, agriculture, chemical and other industries.

- Compact structure, intelligent operation, integrated design

- Use well-known compressors, high efficiency

- Intelligent control, two choices for temperature,without debugging

- Convenient installation, do not need professional technicians, 20 minutes to complete the installation


MEDIUMHIGH BACK PRESSURE

-5℃~5℃ 0℃ Model型号 XMZ050P XMZ075P XMZ100P XMZ125P XMZ175P XMZ200P XMZ250P XMZ300P
Cap (W) 810 1050 1560 2230 2950 3250 4400 5200
Input输入功率(KW) 0.85 1.1 1.3 1.75 2.52 2.61 3.33 4.2
Power supply电源 1PH 220V/50HZ 3PH 380V/50HZ
Compressor压缩机马力(HP) 1/2 3/4 1 1-1/4 1-3/4 2 2.5 3
Cond fan冷凝风机(W ) 1x 75 1x 75 1x 80 1x 80 1x 155 1x 155 2x 80 2x 80
Evap fan蒸发风机( W ) 1x 75 1x 75 1x 80 1x 80 1x 155 1x 155 2x 80 2x 80
Defrost type除霜类型 Electrical heating电加热
Expansion type膨胀机构 Expansion valve膨胀阀
R404A充注量(kg ) <1 <1.2 <1.5 <1.5 <2 <2 <2.5 <3
WT重量(kg) 60 62 7 90 117 120 150 155


LOW BACK PRESSURE

-25℃~15℃ -20℃ Model型号 XMZ050P XMZ75P XMZ100P XMZ150P XMZ200P XMZ300P XMZ400P
Cap (W) 550 660 750 1050 1580 2060 3100
Input输入功率(KW) 0.63 0.71 1.04 1.35 2.01 2.63 3.26
Power supply电源 220V/50HZ 380V/50HZ
Compressor压缩机马力(HP) 1/2 3/4 1 1.5 2 3 4
Cond fan冷凝风机(W ) 1x 75 1x 75 1x 80 1x 80 1x 155 1x 155 2x 80
Evap fan蒸发风机(W ) 1x 75 1x 75 1x 80 1x 80 1x 155 1x 155 2x 80
Defrost type除霜类型 Electrical heating电加热
Expansion type膨胀机构 Expansion valve膨胀阀
R404A充注量(kg ) <1 <1 <1.5 <1.5 <2 <3.0 <3.5
WT重量(kg) 60 62 88 92 123 128 160

Note备注:
The Cap test condition of HGZx x is: Te/Ta: -7℃~35℃. The Cap test condition of HGLx x is: Te/Ta: -25℃~35℃.
HGZx x上限测试条件是: TE/TA: -7℃~35℃。 HGLx x上限测试条件是: TE/TA: -25℃~35℃
