Wall-mounted Box L Type Refrigeration Unit

Refrigeration Unit

The best commercial refrigeration equipment for a fruit and vegetable storage area

Our condensing units have medium temperature (-15°C~-18°C), low temperature (-18°C ~-25°C) and high temperature (0°C ~5°C). It is equipped with the original new best brand compressor, such as Danfoss, Emerson, Panasonic, with high efficiency corrosion proofing design evaporator and condenser.

The 2~12HP main engine mainly uses scroll compressors, and the size and shape suitable for the installation of semi-hermetic compressors can also be customized according to customer requirements; The fans are all external rotors, which are easy to install, repair and maintain, operate smoothly and have low noise.

Product Highlights

+ MORE

Overview

CONTACT US

Technical Information

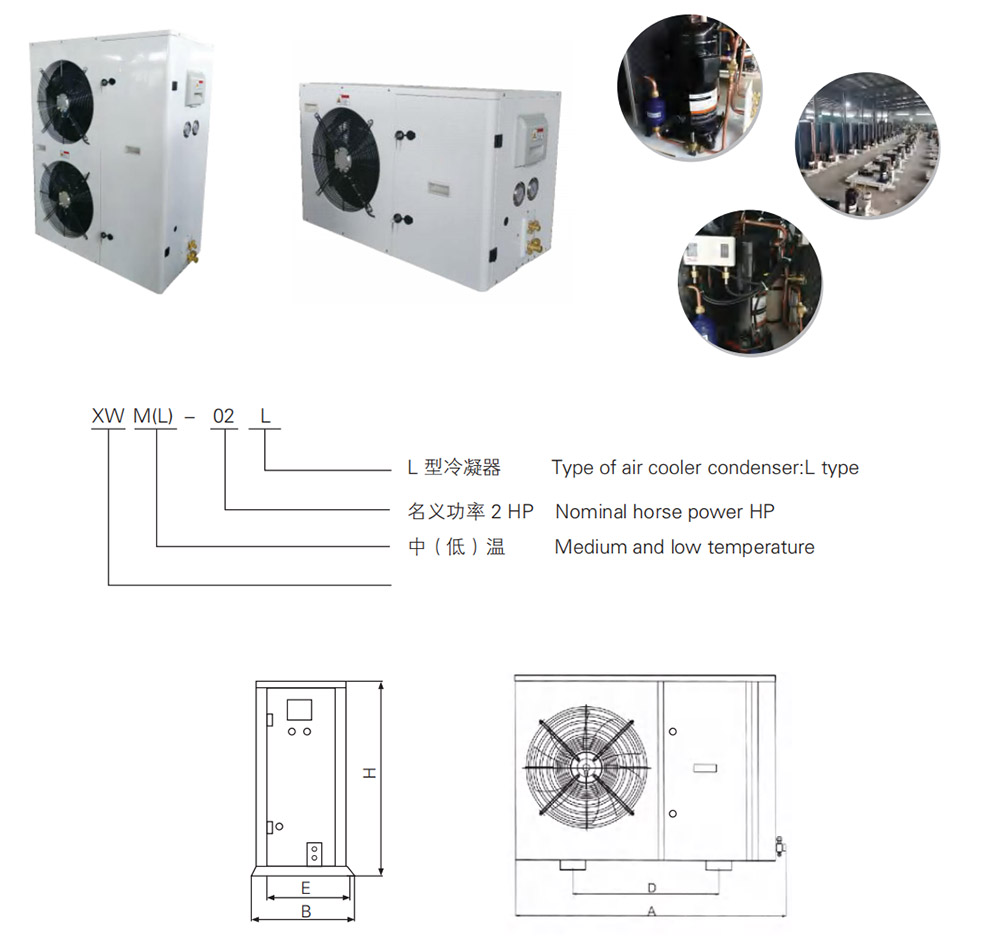

Product model：XW M(L)- 02 L

Features：

Type: Hermetic scroll or reciprocating piston compressors

Compressor type : single compressor

Compressor Series: standard

Customization：support

Refrigerant：R22, R404A, R448A, R507A.

Compressor brand：Danfoss, Emerson, Panasonic, etc.

Color：outside white

Application：small or medium type cold storage, plant room, etc.

Function:  cooling & freezing

Item: Condensing Unit

After Warranty Service：Video technical support/Online support

Certification：UL CE

The best commercial refrigeration equipment for a fruit and vegetable storage area

Our condensing units have medium temperature (-15°C~-18°C), low temperature (-18°C ~-25°C) and high temperature (0°C ~5°C). It is equipped with the original new best brand compressor, such as Danfoss, Emerson, Panasonic, with high efficiency corrosion proofing design evaporator and condenser.

The 2~12HP main engine mainly uses scroll compressors, and the size and shape suitable for the installation of semi-hermetic compressors can also be customized according to customer requirements; The fans are all external rotors, which are easy to install, repair and maintain, operate smoothly and have low noise.

中高温风冷冷凝机组( MH)
Medium and High Temperature Air- cooled Condensing Unit
涡旋系列Scroll Series
机组型号Model of units XWM-02L XWM-03L XWM-04L XWM-05L XWM-06L
压缩机型号Compressor model ZB15KQE ZB21KQE ZB29KQE ZB38KQE ZB45KQE
适用蒸发温度(℃) Applicable Temperature 0℃~-15℃
电源Power supply 380V/50HZ
冷凝器Condenser 风机数量(只) Quantity of Fan 1 1 2 2 2
风量(m3/h) Air volume 1*2700 1*3500 2*2700 2*3500 2*3500
风机功率(W) Power of Fan 1*145 1*190 2*145 2*190 2* 190
压缩机组制冷量
Ref.Capacity of Condensing Units 		蒸发温度℃
Evaporating Temperature 		制冷量(W)
Ref.Capacity 		4775 6840 8960 11200 13850
电功率(W)
Power 		1615 2300 2860 3570 4330
蒸发温度-5℃
Evaporating Temperature 		制冷量(W)
Ref.Capacity 		3900 5710 7340 9175 11150
电功率(W)
Power 		1630 2280 2820 3525 4325
蒸发温度-12℃
Evaporating Temperature 		制冷量(W)
Ref.Capacity 		2985 4230 5260 6575 8560
电功率(W)
Power 		1660 2240 2790 3490 4345
接口Coupling 出液管接口Tube coupling Φ10 Φ10 Φ12 Φ12 Φ12
吸气管接口Suction coupling Φ16 Φ16 Φ19 Φ19 Φ19
外形尺寸Overall
dimension 		长(A)mm Length 950 (1000) 950 (1000) 950 (1000) 950 (1000) 950(1000)
宽(B)mm Width 350 (400) 350 (400) 350 (400) 350 (400) 350 (400)
高(H)mm Height 630 830 1030 1230 1230
安装尺寸Installation dimension 长(D)mm Length 635 635 635 635 635
宽(E)mm Width 450 450 450 450 450


低温风冷冷凝机组(L )
Low Temperature Air-cooled Condensing Unit
涡旋系列Scroll Series
机组型号Model of units XWL-02L XWL-03L XWL-04L XWL-05L XWL-06L
压缩机型号Compressor model ZSIO6KQE ZSI09KQE ZSI11KQE ZSI15KQE ZSI18KQE
适用蒸发温度(℃) Applicable Temperature -5℃~-25℃
电源Power supply 380V/50HZ
冷凝器Condenser 风机数量(只) Quantity of Fan 1 1 2 2 2
风量(m3/h) Air volume 1*2700 1*3500 2*2700 2*3500 2*3500
风机功率(W) Power of Fan 1*145 1*190 2*145 2*190 2*190
压缩机组制冷量
Ref.Capacity of Condensing Units 		蒸发温度-15℃
Evaporating Temperature 		制冷量(W)
Ref.Capacity 		2550 3990 5400 6750 7950
电功率(W)
Power 		2000 2650 3490 4370 5050
蒸发温度-20℃
Evaporating Temperature 		制冷量(W)
Ref.Capacity 		2020 3280 4400 5500 6540
电功率(W)
Power 		1980 2630 3480 4350 5030
蒸发温度-25℃
Evaporating Temperature 		制冷量(W)
Ref.Capacity 		1620 2680 3760 4700 5650
电功率(W)
Power 		1960 2610 3460 4330 5010
接口Coupling 出液管接口Tube coupling Φ10 Φ10 Φ12 Φ12 Φ12
吸气管接口Suction coupling Φ16 Φ16 Φ19 Φ19 Φ19
外形尺寸Overall
dimension 		长(A)mm Length 1000 1000 1000 1000 1000
宽(B)mm Width 500 500 500 500 500
高(H)mm Height 630 830 1030 1230 1230
安装尺寸Installation dimension 长(D)mm Length 635 635 635 635 635
宽(E)mm Width 550 550 550 550 550


  1. The ref.capacity and power is based on the ambient temperature at 32 degree
  2. Configuration can be increased or decreased according to requirements
