Roof-mounted Mono Block Condensing Unit
Wall-mounted Mono blocks condensing unit can fit the temperature of -5℃~+5℃and -15℃~-25℃. It is suitable for small cold storage, such as hotels, hygiene, medicine, agriculture, chemical and other industries.
Refrigeration Unit

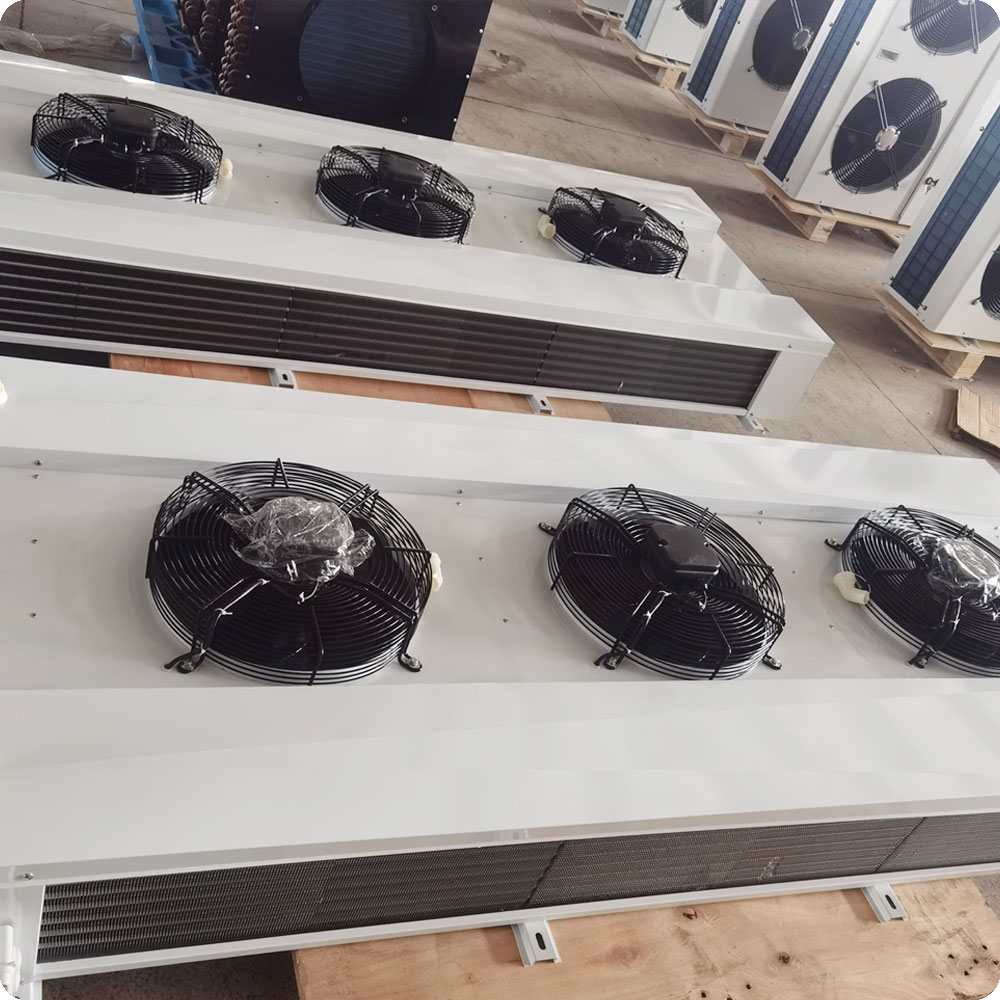

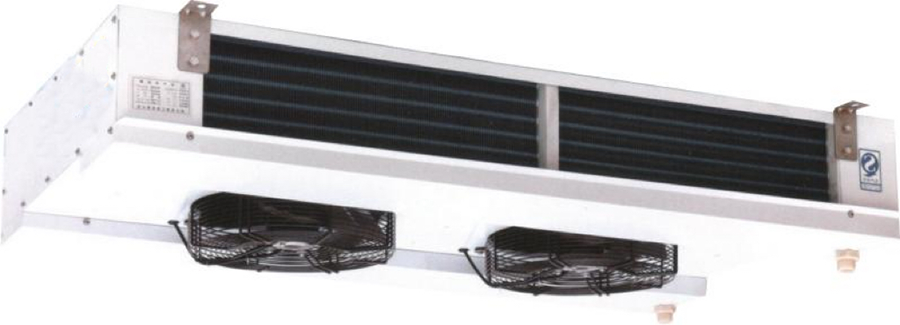

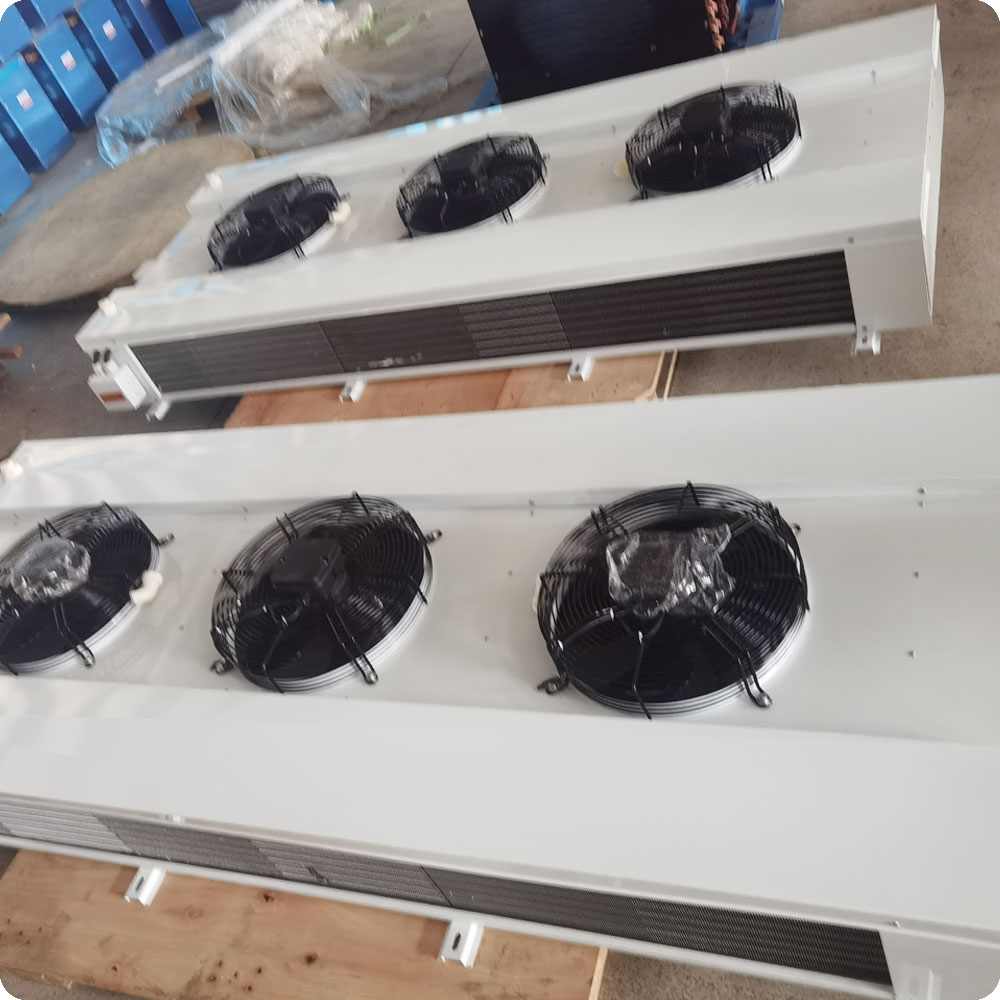

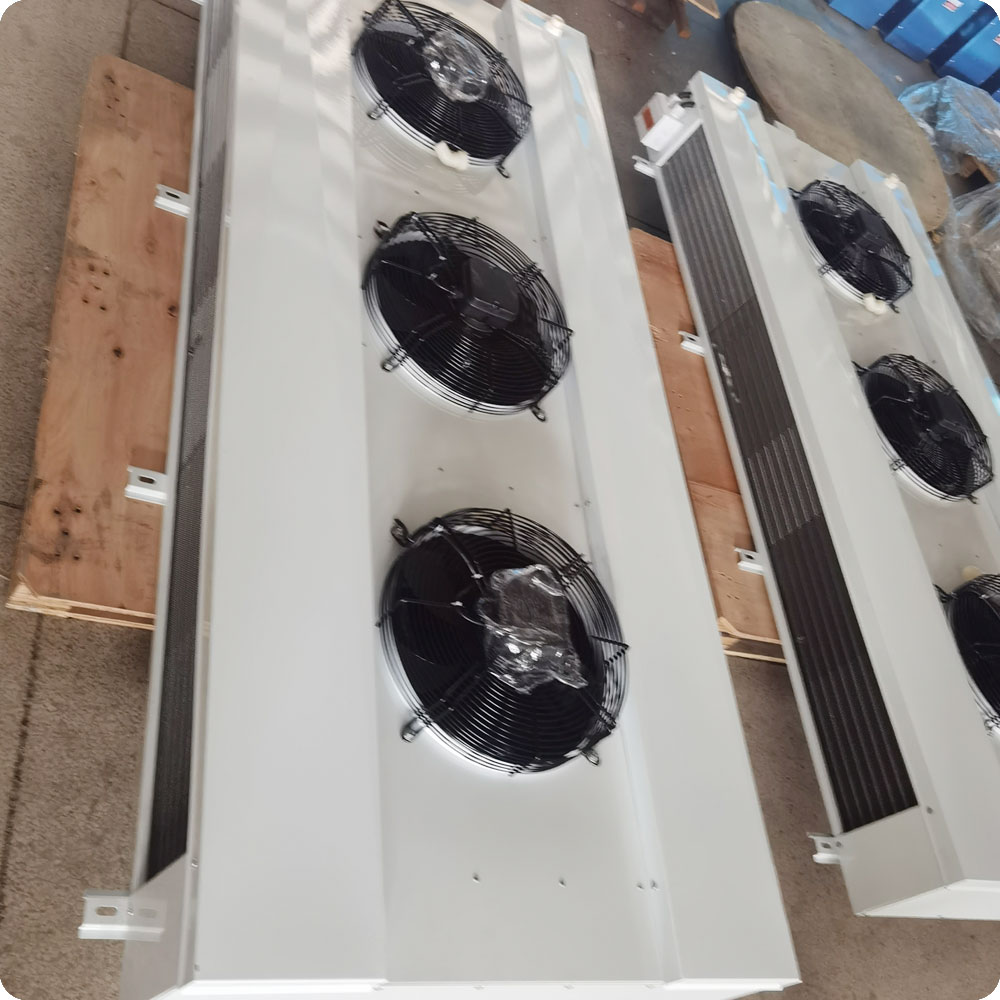

The XWS series Ceiling Type Roof-mounted Air Cooler can provide smooth and quiet air supply, directing the air to the top of the cold room and then to the entire space. It is widely used in warehouses, shopping mall halls, etc. Using high-efficiency pure copper tube heat ex-changer, hydrophilic aluminum sheets have better corrosion resistance. The optimized condensate water collection tray effectively prevents condensate water from freezing.
Product model：XWS series
Features：
Type: Ceiling Type Roof-mounted
Color：outside white
Application：warehouses and shopping mall halls, etc.
Function: cooling & freezing
Expansion valve: Danfoss
-Wide temperature range that covers both refrigeration and air conditioning systems.
-Interchangeable orifice assembly for easy stocking and service.
-Stainless steel bulb and Danfoss patented bulb strap for fast and easy installation.
-Adjustable and non-adjustable superheat setting designs.
-Full refrigerant compatibility.
Item: Air Cooler
After Warranty Service：Video technical support/Online support
Certification：UL
The XWS series Ceiling Type Roof-mounted Air Cooler can provide smooth and quiet air supply, directing the air to the top of the cold room and then to the entire space. It is widely used in warehouses, shopping mall halls, etc. Using high-efficiency pure copper tube heat ex-changer, hydrophilic aluminum sheets have better corrosion resistance. The optimized condensate water collection tray effectively prevents condensate water from freezing.
|
型号 Model |
制冷量 Cooling Capacity* kw |
换热面积 Area m2 |
管内容积 Refrigerant Volume L |
接口 Conn. 进口-出口 Inlet - Outlet mm |
风量 AirFlowm m3/h |
风机数量×直径 Q‘ty xØ (mm) |
风机 Fan 功率 Power w |
电流 Curent A |
送风距离 Range m |
噪音 Noise dB (A) |
| XWS-A/1 | 2.86 | 13.5 | 2.3 | 12-19 | 2290 | ●350 | 1x140 | 1x0.38 | 2x6 | 64 |
| XWS-B/1 | 3.76 | 20.2 | 3.4 | 16-19 | 2290 | ●350 | 1x140 | 1x0.38 | 2x5 | 64 |
| XWS-A/2 | 5.74 | 26.3 | 4.3 | 16-28 | 4580 | ●●350 | 2x140 | 2x0.38 | 2x6 | 67 |
| XWS-B/2 | 7.58 | 39.5 | 6.4 | 16-28 | 4580 | ●●350 | 2x140 | 2x0.38 | 2x5 | 67 |
| XWS-A/3 | 8.64 | 39.2 | 6.2 | 16-28 | 6870 | ●●●350 | 3x140 | 3x0.38 | 2x6 | 69 |
| XWS-B/3 | 11.4 | 58.7 | 9.3 | 16-28 | 6870 | ●●●350 | 3x140 | 3x0.38 | 2x5 | 69 |
| XWS-A/4 | 11.5 | 52 | 8.2 | 16-28 | 9160 | ●●●●350 | 4x140 | 4x0.38 | 2x6 | 70 |
| XWS-B/4 | 15.3 | 78 | 12.3 | 16-28 | 9160 | ●●●●350 | 4x140 | 4x0.38 | 2x5 | 70 |
*制冷量基于室温0℃ The coaling capacity at room temperature 0℃.
Hotels,
Garment Shops,
Building Material Shops,
Machinery Repair Shops,
Manufacturing Plant,
Food & Beverage Factory,
Farms,
Restaurant,
Home Use,
Retail,
Food Shop,
Printing Shops,
Construction works,
Energy & Mining,
Food & Beverage Shops,
Advertising Company
Wall-mounted Mono blocks condensing unit can fit the temperature of -5℃~+5℃and -15℃~-25℃. It is suitable for small cold storage, such as hotels, hygiene, medicine, agriculture, chemical and other industries.
The best commercial refrigeration equipment for a fruit and vegetable storage area Our condensing units have medium temperature (-15°C~-18°C), low temperature (-18°C ~-25°C) and high temperature (0°C ~5°C). It is equipped with the original new best brand compressor, such as Danfoss, Emerson, Panasonic, with high efficiency corrosion proofing design evaporator and condenser.
Best selling industrial refrigeration equipment for fruit & vegetable store room Our Bitzer condensing units have medium temperature (-10°C~+10°C), low temperature (-10°C ~-35°C) and deep blast temperature (-25°C ~-45°C). It is equipped with the original new Bitzer compressor, high efficiency corrosion proofing design evaporator and condenser. What’s more, for other accessories, we stick to best brand, such as Danfoss, Siemens, Schneider, Weinview.
1Our Bitzer condensing units have medium temperature (-10°C~+10°C), low temperature (-10°C ~-35°C) and deep blast temperature (-25°C ~-45°C). It is equipped with the original new Bitzer compressor, high efficiency corrosion proofing design evaporator and condenser. What’s more, for other accessories, we stick to best brand, such as Danfoss, Siemens, Schneider, Weinview.
1Our Bitzer condensing units have medium temperature (-10°C~+10°C), low temperature (-10°C ~-35°C) and deep blast temperature (-25°C ~-45°C). It is equipped with the original new Bitzer compressor, high efficiency corrosion proofing design evaporator and condenser. What’s more, for other accessories, we stick to best brand, such as Danfoss, Siemens, Schneider, Weinview.
Best selling industrial refrigeration equipment for fruit & vegetable store room Our Bitzer condensing units have medium temperature (-10°C~+10°C), low temperature (-10°C ~-35°C) and deep blast temperature (-25°C ~-45°C). It is equipped with the original new Bitzer compressor, high efficiency corrosion proofing design evaporator and condenser. What’s more, for other accessories, we stick to best brand, such as Danfoss, Siemens, Schneider, Weinview.
