Cold Room Panel

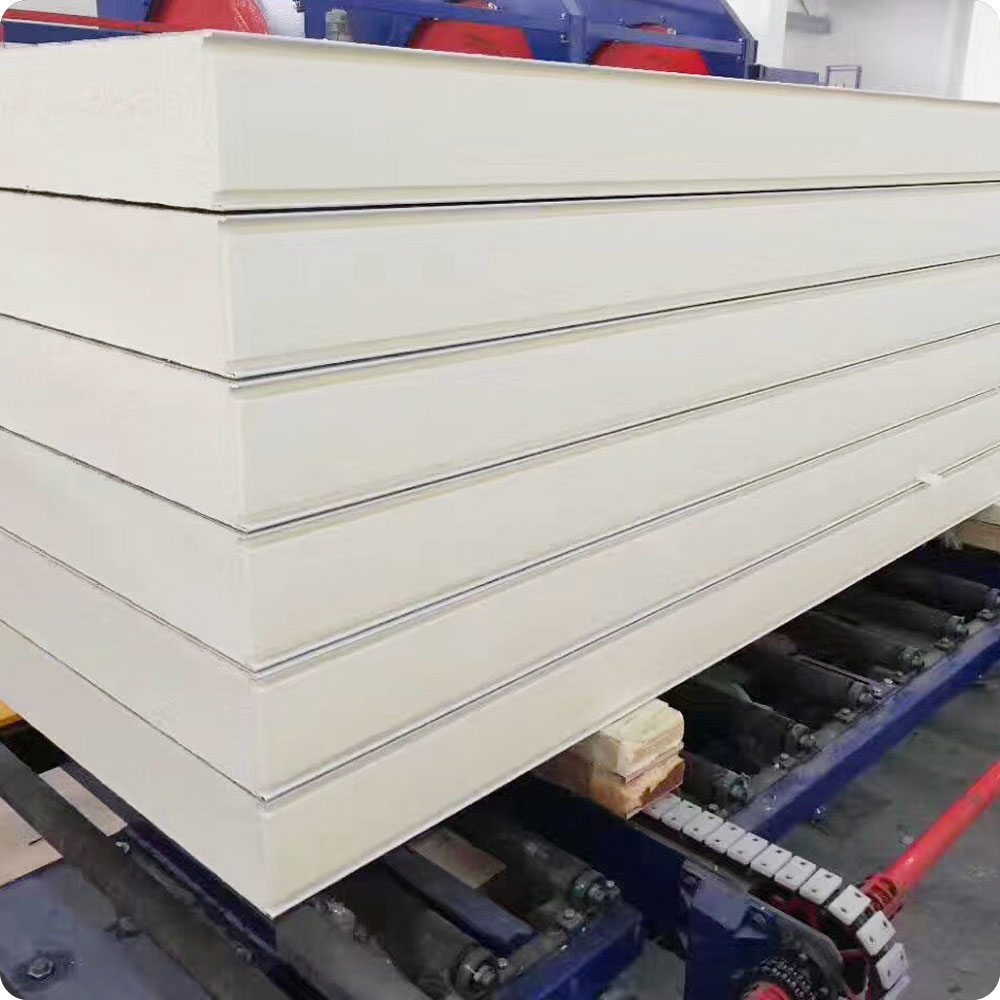

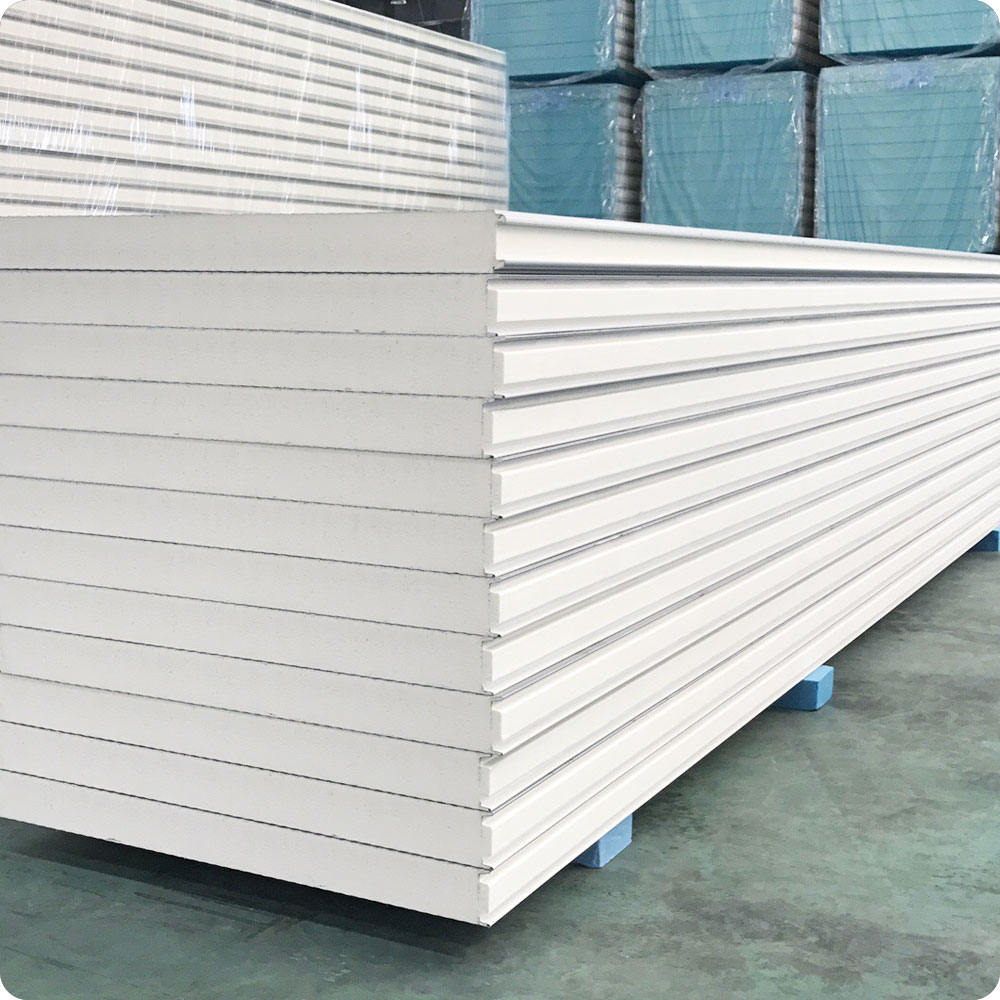

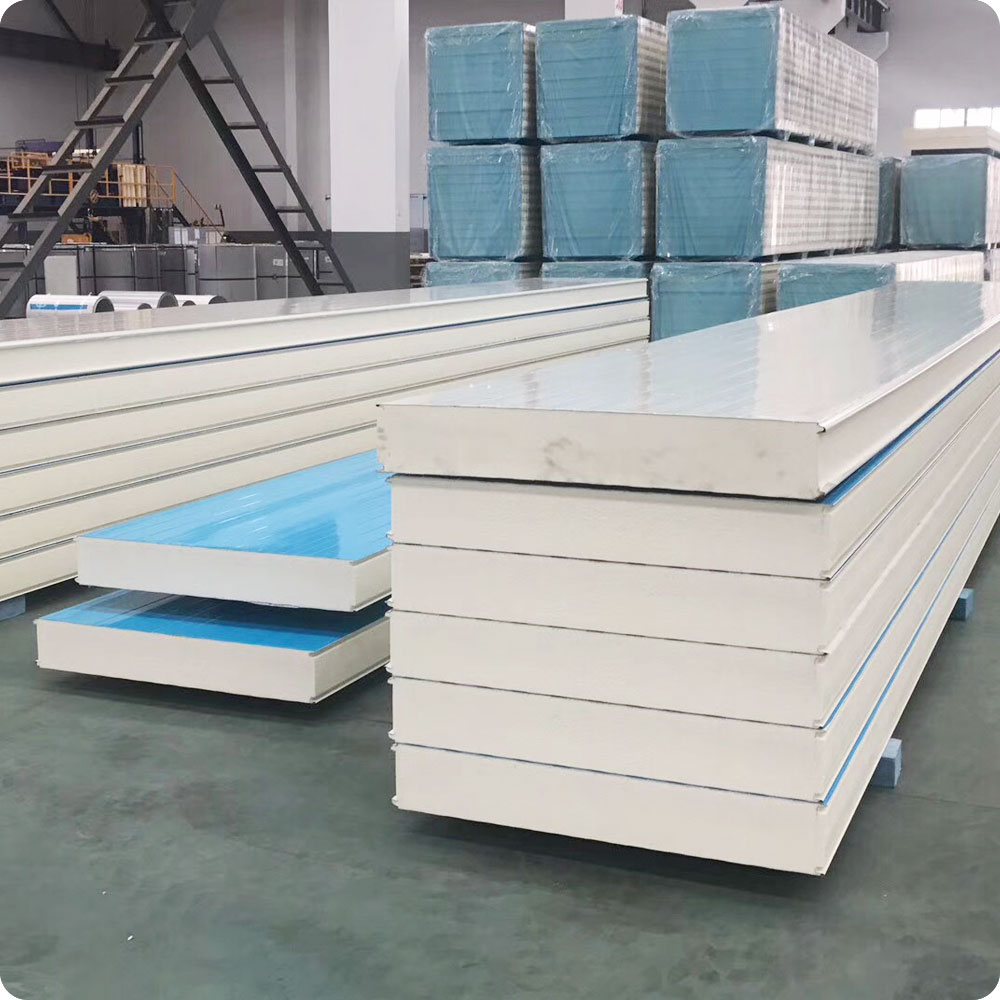

Taking polyurethane with excellent insulation performance as core material and colored steel sheet,304 stainless steel or aluminum sheet as external material, the sandwich-type board can reduce the heat conduction due to difference between internal and external temperature to achieve maximum efficiency of freezing and refrigeration system
With advanced Polyisocyanurate (PIR) insulation technology, our panels offer exceptional thermal resistance, minimizing heat transfer and maintaining optimal temperature levels within your cold storage facility. Bid farewell to energy loss and say hello to consistent and efficient storage conditions.
Advantages of PIR sandwich panel
1) Excellent fire test performance (B1 grade fire-resistance)
2) Superior R-Value and thermal performance
3) Moisture resistance
4) Dimensionaly stable
5) Unaffected by commonly used construction adhesives and solvents
6) Building code conformance
Taking polyurethane with excellent insulation performance as core material and colored steel sheet,304 stainless steel or aluminum sheet as external material, the sandwich-type board can reduce the heat conduction due to difference between internal and external temperature to achieve maximum efficiency of freezing and refrigeration system
With advanced Polyisocyanurate (PIR) insulation technology, our panels offer exceptional thermal resistance, minimizing heat transfer and maintaining optimal temperature levels within your cold storage facility. Bid farewell to energy loss and say hello to consistent and efficient storage conditions.
| Specification & Technical Standard of PIR sandwich panels | ||
| Width | Standard width 1120mm, | |
| Length | As customers' requirements. | |
| Thickness | 50/75/100/150/200/250 mm | |
| Surface material | Color stee/stainless steel/embossed aluminum/ anti-slip aluminum | |
| Core material | PIR(polyisocyanurate) | |
| Joint system | slip-joint | |
| Density | 45+2 kg/m3 | |
| Heat Conductivity | ≤0.022 W/m. k | |
| Compressive Strength | ≥160 N/cm2 | |
| Combustion performance | B1 grade | |
| The bond strength between sandwich core layer and panel | >0.1 | |
| The technical standard of Fast-fit(male-female) type panel | ||||||||||||
| NO. | Surface material | Thickness | Surface streak | |||||||||
| 50mm | 75mm | 100mm | 120mm | 150mm | 175mm | 200mm | 250mm | Flat | Ribs grain | Finely-lami-nated | ||
| 1 | Colored steel sheet(0.326-0.8mm) | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 2 | Stainless steel sheet(0.4-0.8mm) | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 3 | Emboseed aluminum sheet(0.5-3mm) | √ | √ | √ | √ | √ | √ | √ | √ | |||
| 4 | Galvanized steel sheet(0.5-2mm) | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||
| 5 | Polyurethane panel without steel | √ | √ | √ | √ | √ | √ | √ | √ | |||
XPS Panel is a material that is continuously extruded and foamed by a special process. The hard film formed on the surface is even and flat, and the internal closed cell foam is continuous and uniform, forming a honeycomb structure, so it has high compression resistance, light weight, no Water absorbing, non-breathable, wear-resistant and non-degradable.
The structure of the panel is a polyurethane sandwich panel made with traditional molds,which is embedded the eccentric hook in the mould around the sandwich panel when produce,convenient assembly,and generally applicable to small or medium-sized cold storage.

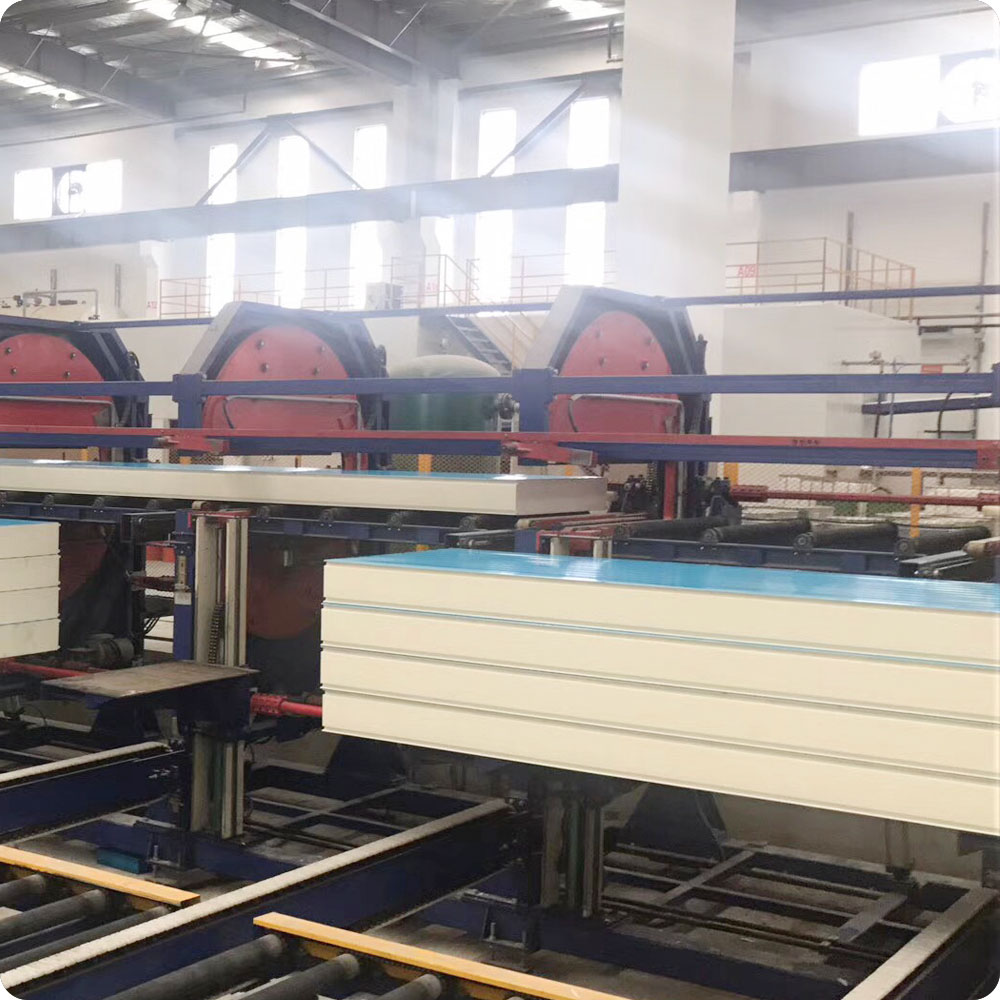

We are factory which is established in 1993 with more than 30 years industry experience
