Cold Room Door
Our company's new research and development of manual/electric cold storage sliding door, simple installation, long distance stability. And according to the actual needs, can be extended geomagnetic induction, infrared induction, hand induction, pull wire switch and so on.

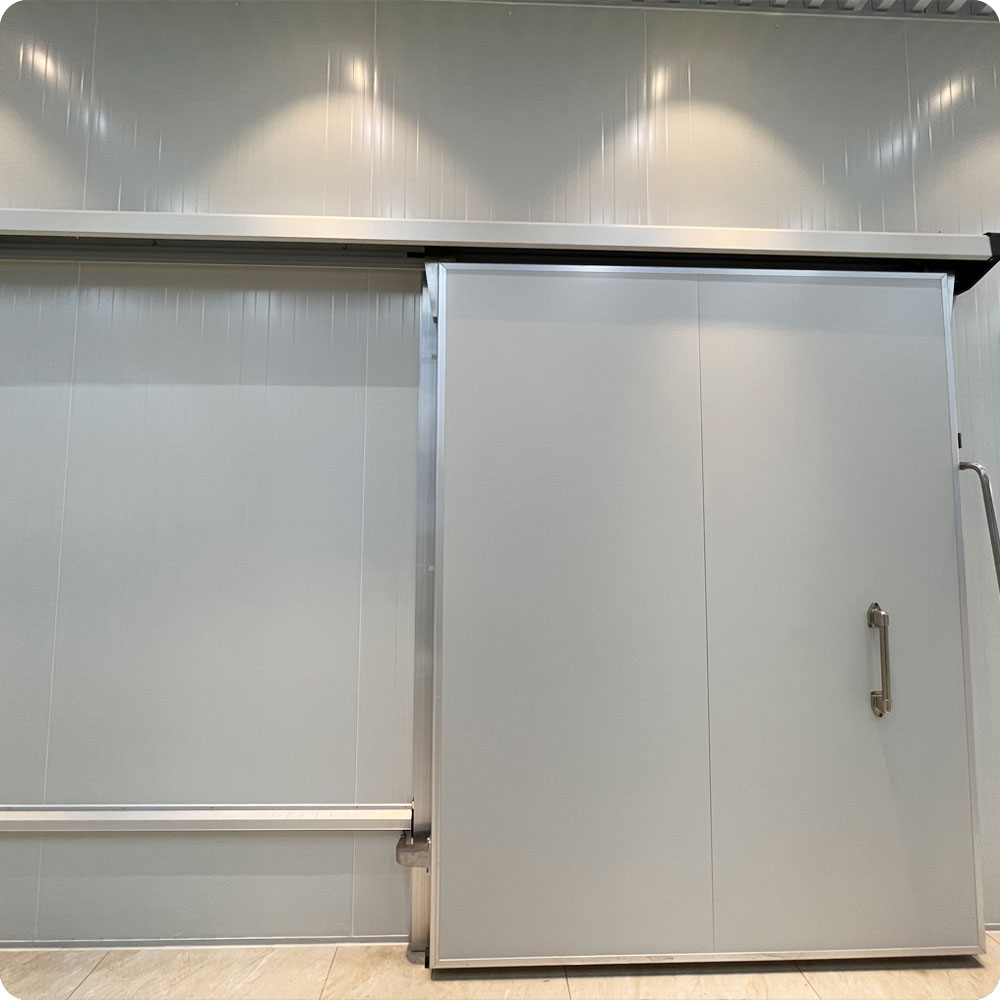

Cold room sliding door is designed and manufactured completely cold-bridge free. Our brand cold room sliding door is well known for high cycle, durability and excellent thermal properties. Most of the cold room sliding doors are horizontal sliding doors that easy to operate manual or automatically. They are made with the CFC-free insulated PU panel, stainless steel or galvanized steel that meet EC/USDA international hygiene standards, they are are available in customized sizes and structure for temperature ranges from -25°C to 50°C.
All electric sliding cold storage doors use a special control system for cold storage doors. This control system is to write PLC function into the chip (DSP), using energy saving, environmental protection, low voltage (36V), high torque, permanent magnet DC motor combination as a system, the whole use of rolling and frequency conversion, segmented positioning, automatic repair, memory default, so that it can achieve the ideal control effect.
Door Panel - The door panel can be made of 304 stainless steel or colored steel plate. The door panel frame is made of aluminum alloy profiles and with PVC cooling bridge, so that the cold source on the surface of the door body is not easy to run to the outside of the door body. Polyurethane foam as a whole, the density of 42KG/M3, the door plate has an Angle steel structure frame, and the bearing parts are buried with 6MM steel plate.

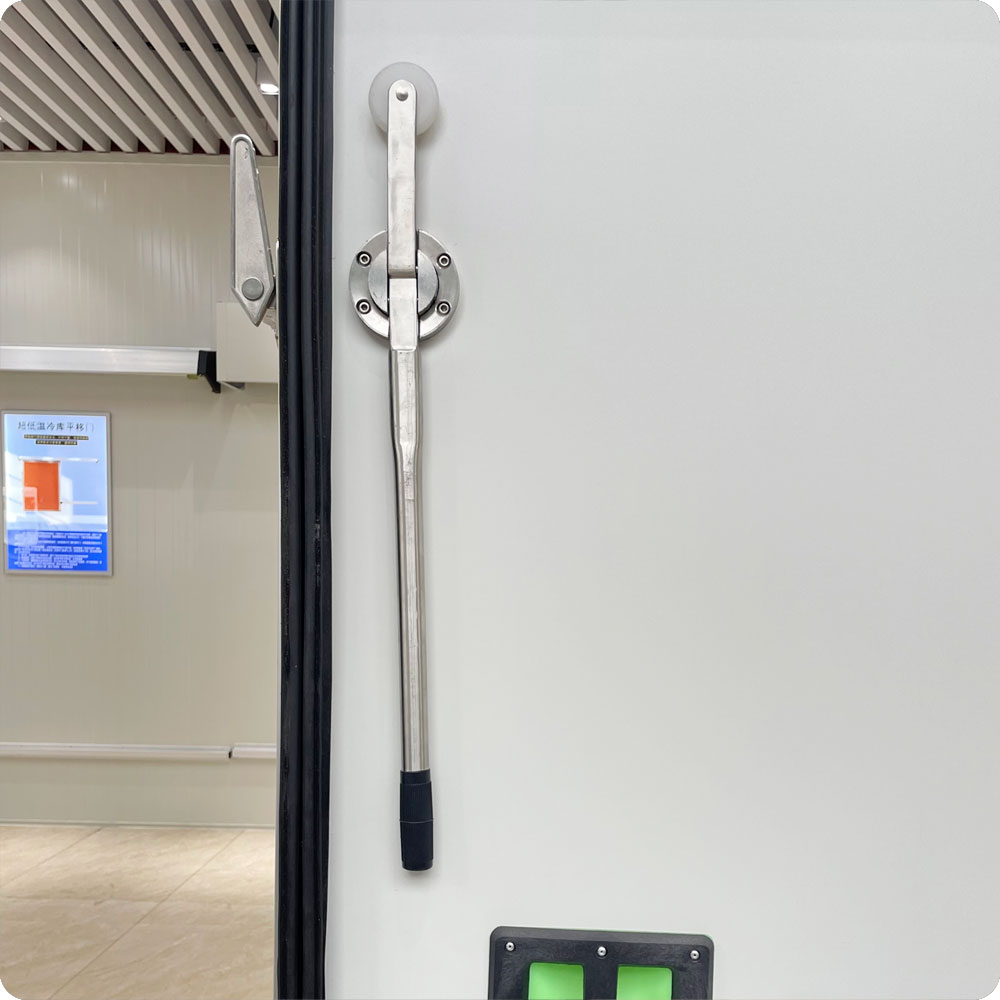

Door Body - Door body hardware accessories are 304 stainless steel precision castings, conventional equipped with external door opener to facilitate the opening of the door, can be added according to the requirements of the internal door opener and external handle.
Sealing Frame - The sealing frame of the door hole is a high-strength aluminum alloy door frame, and has a cooling bridge design, which can put heating wire.

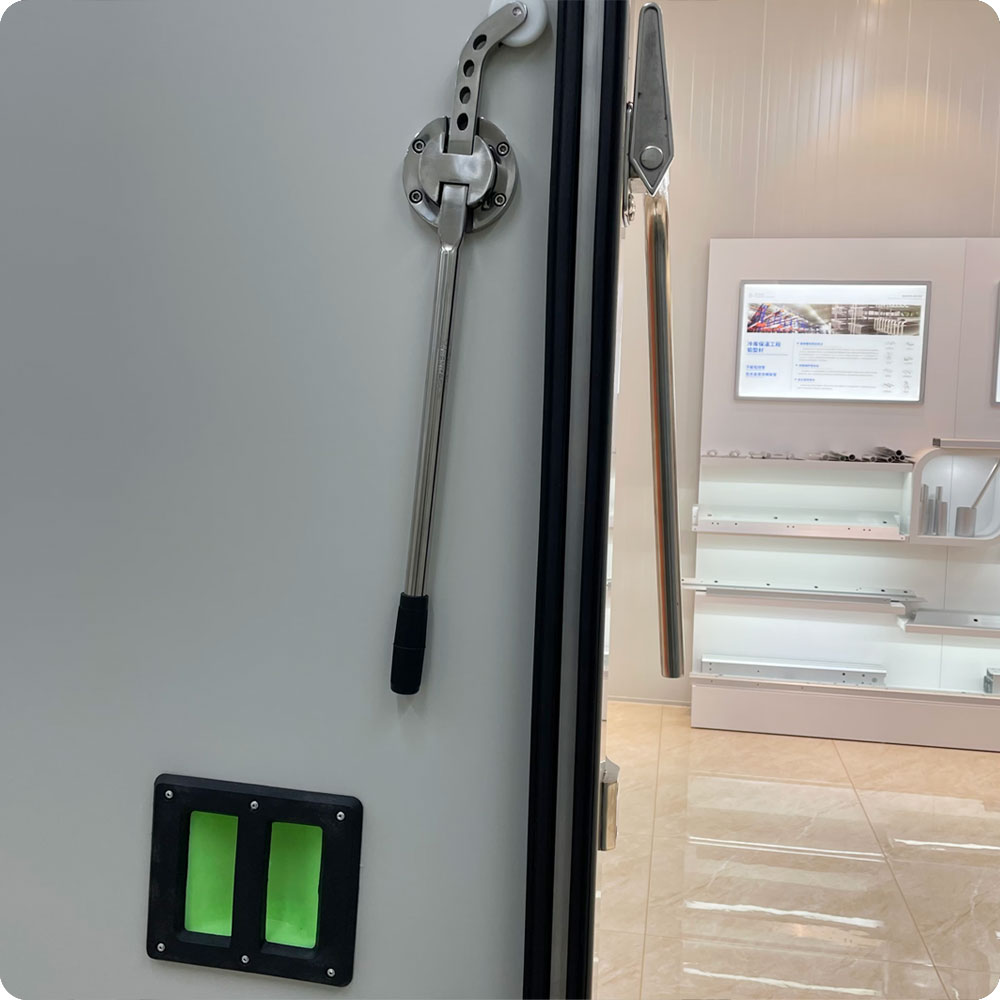

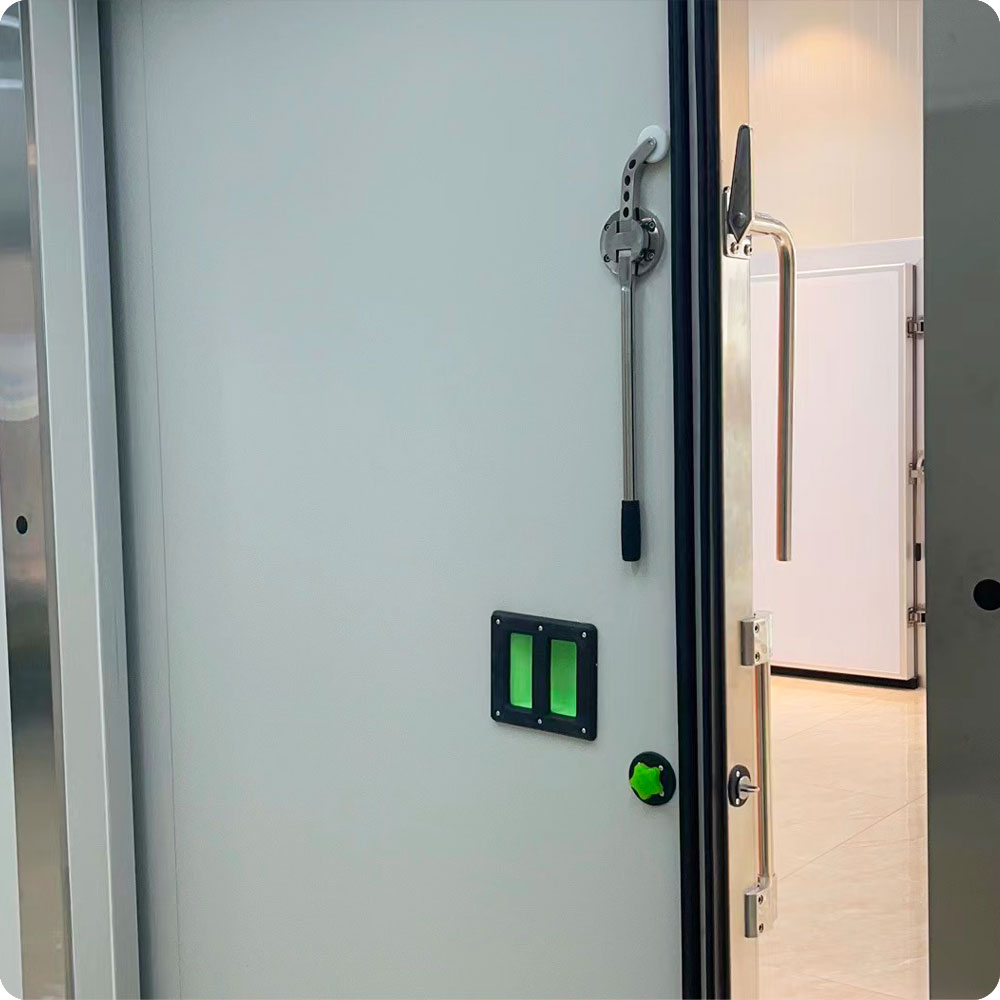

Safety Escape Device - The cold storage door has a safety escape device, such as the aesthetic requirements are particularly high, can add track cover and inner door cover. Our sliding doors have the characteristics of perfect sealing, reliable, safe and easy to operate and long service life.
Our company's new research and development of manual/electric cold storage sliding door, simple installation, long distance stability. And according to the actual needs, can be extended geomagnetic induction, infrared induction, hand induction, pull wire switch and so on.
Cold room sliding door is designed and manufactured completely cold-bridge free. Our brand cold room sliding door is well known for high cycle, durability and excellent thermal properties. Most of the cold room sliding doors are horizontal sliding doors that easy to operate manual or automatically. They are made with the CFC-free insulated PU panel, stainless steel or galvanized steel that meet EC/USDA international hygiene standards, they are are available in customized sizes and structure for temperature ranges from -25°C to 50°C.
| Door Panel | 304 stainless steel / colored steel |
| Door Panel Frame | aluminum alloy profiles, with PVC cooling bridge |
| Door Panel density | 42KG/M3 Polyurethane foam |
| Door Plate | 6MM steel plate |
| Door body hardware accessories | 304 stainless steel precision castings |
| Sealing Frame | high-strength aluminum alloy |
For Electric Sliding Door:
| Motor working environment | -25°C-50°C |
| Motor insulation grade | F |
| Motor protection class | IP54 |
| Output voltage of control box | 36V (DC) |
| lnput voltage of control box | 220v/380V (AC) |
| Protection grade of control box | IP65 |
Hotels
Building Material Shops
Machinery Repair Shops
Manufacturing Plant
Food & Beverage Shops, Factory, Farms
Restaurant
Home Use
Retail
Food Shop
Construction works
Energy & Mining
Stainless steel double active impact traffic free doors, also called impact doors,bumper doors or double acting doors, widely used in food and drug factories, restaurant, kitchens, supermarket, shopping center, and warehouse.
Half Buried Hinged Door is that half of the door panel is embedded in the door frame, which has strong sealing and thermal insulation, and its appearance is more beautiful. It is suitable for various escape doors of cold storage passages, and has good thermal insulation effect.
Cold Storage Rolling Up Shutter Door are mainly used in smart livelihood projects. The organic combination of servo technology, sensing technology and communication technology makes the cold storage door products intelligent, technological, digital, modular and humanized. Under the premise of ensuring safety and stability, we focus on providing energy-saving solutions for vaults, freezers, and refrigerated logistics channels.
Full buried door series (automatic return door), the door body is aligned with the door frame. It can be closed automatically and pressed tightly, with beautiful appearance, good air-tightness and insulation performance. It can be applied to various cold storage passages and safety escape door devices, and has a good heat preservation effect.
Clean doors are professionally designed for use in public places. the use of arc transition in the structure design, effective anti-collision, no dust, easy to clean. Panel is wear-resistant, moisture-proof, impact resistance, flame retardant, anti-bacterial, anti-fouling, colorful and other advantages.
PVC high speed rolling shutter door It can be used in clean workshops (textile, electronics, mechanical printing, chemical, packaging, logistics).Both sides of the door frame are equipped with double-sided sealed brushes, and the bottom is equipped with elastic PVC curtains,which can be tightly combined on uneven ground.
